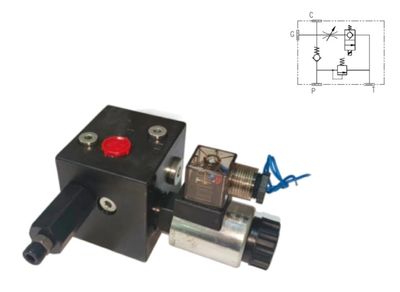

Lift - lower block (FLLB)
FLLB Lift Lower blocks are compact hydraulic assemblies used to control single-acting cylinders. They are commonly used in material handling equipment viz. stackers and scissor lifts. These are also called lowering control blocks and allow controlled lowering through either adjustable flow control valves or fixed orifices. The lowering is controlled using a zero leak poppet type valve that is solenoid operated with multiple voltage options. An in-built safety relief valve prevents overloading of the hydraulic system.
Key Features
- Lift Lower block rated for 20 and 40lpm
- Inbuilt Check Valve, Throttle Valve* and Relief Valve
- Suitable for Single Acting Cylinder applications
- Available with 12, 24VDC and 220VAC solenoid coils
