Gear pumps (FGP)

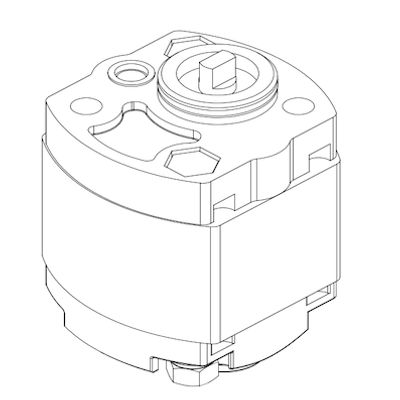

These are constant delivery pumps that use the meshing of gears to pump fluids by displacement. The pump consists of a pair of gears supported by bearings and housing with front and rear covers. These pumps are designed for high efficiency and low noise and are excellent even at low RPMs. They are recommended for low and medium-pressure applications.
The FGP series has a standard SAE 2-bolt mounting design with a parallel key shaft that makes it 1:1 interchangeable with most global makes. The unique CBK series is designed for mounting as a sandwich pump with pressure port on the shaft side.
Key Features
- Constant delivery pumps from 0.8 to 13.3cc/rev
- Aluminium lightweight and compact design
- Working Pressures up to max 200 Kgf/cm2
- Standard SAE 2-bolt mounting design
- Unique CBK series with shaft end output making it suitable for manifold mounting
