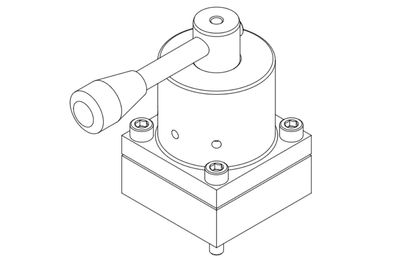

Rotary DC valve (F4RDC)/ 700bar
F4RDC valves are 4-way, 3-position manual valves that use a rotational movement to open, close and divert pressurised oil flow rather than the conventional sliding type design with spool. Unlike conventional valves, these “rotary” valves are compact, reduce internal leakages and are suitable for high pressure applications like hydraulic jacks, strand pullers and tensioning equipment.
A variety of flow paths are available as indicated in the following pages of the document and come with detent actuation as standard. The valves are available with both carbon steel or light weight high strength aluminium body.
The mounting is a sub-plate design with factory standard interface with specially designed hand lever for easy actuation. The valve is to be operated before pressurising or after depressurising the system to ensure longer life of the valve and prevent damage to internal components.
Consult factory for any customisation for higher flows, spool types or MOC requirements.
