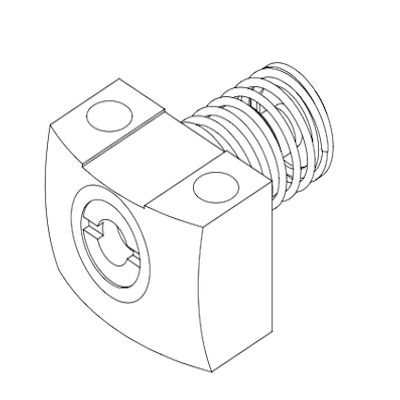

Pumping Element (PA)
Pumping elements PA are modules used for delivering fluid flow in radial piston pumps. The modules can be used as individual assemblies to build custom pumps or for replacement in FLUIDIK make pumps. The elements are available with various diameters and strokes, capable of delivering flows up to 1.07 cc/stroke and pressures up to 700 bar.
The elements are most commonly driven by electric motors through a rotating shaft, which is converted into reciprocating motion using an eccentrically mounted bearing. The radial piston pumps are not direction specific and may be used either in CW or CCW directions. These pumps are most popular for high-pressure applications, and their salient features include the ability to design custom flow requirements and multiple port configuration options.
