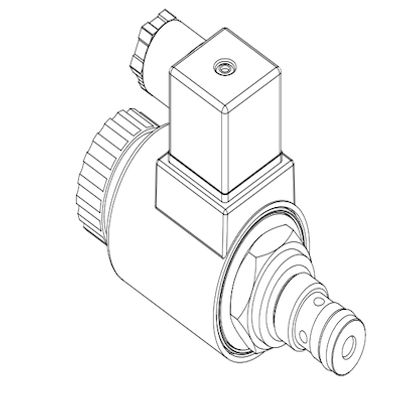

Poppet valves/ cartridge/ NG6 (DHF06)
DHF valves are solenoid-operated direct-acting poppet type 2-way and 2-position directional control valves that may be actuated by either DC or AC voltages to open or close the oil path. Once the coils are energised, the poppet opens/ closes and allows/ blocks oil flow from 1 to 2 or 2 to 1 based on valve selection. The valve is designed for low pressure drop due to its design and is available in either 12/24VDC or 220VAC versions.
DHF valves are available as NG6 or NG8 sizes. NG6 (DHF06) version is available both in NO and NC configuration, while NG8 (DHF08) version is available as NC version only.
Refer below product catalogue for details.
