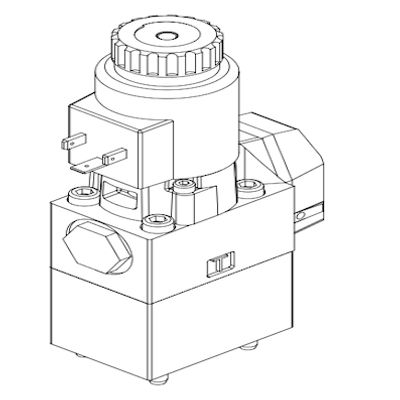

high pressure DC valve/ 4/2 Type/ 700 bar (FM4)

---

FM4… directional control valves are 4/2 direct operated poppet type valves rated for operating pressures up to 700bar. The valves use wet-pin type 24VDC or 220VAC solenoid coils and meet CETOP3 mounting requirements as per ISO4401. The valves are designed for vertical stacking and come with in-built manual override feature.

Also available with pneumatic actuated and also push-knob type.
