CETOP 3 (NG6) VAlves - Direction, Flow & Presure Control

---

CETOP 3 (NG6) are control valves with standardised mounting pattern defined as per ISO 4401-03 used globally in industrial machinery. These valves are designed for modular stacking, allowing multiple directional, pressure, or flow control valves to be mounted directly onto a single manifold block. The standard mounting face features a specific four-bolt hole configuration with 4 distinct fluid ports (P, T, A, B) arranged in a precise rectangular grid.

FLUIDIK CETOP 3 valves have a compact footprint making them ideal for tight spaces in hydraulic power units, mobile equipment, and automated manufacturing lines where precision is critical. Interchangeability is a major benefit of the CETOP standard, allowing maintenance engineers to easily swap equivalent valves across different manufacturers. Troubleshooting is also simplified because a faulty valve can simply be unbolted and replaced from the manifold faceplate without needing to disconnect the main system plumbing or piping.

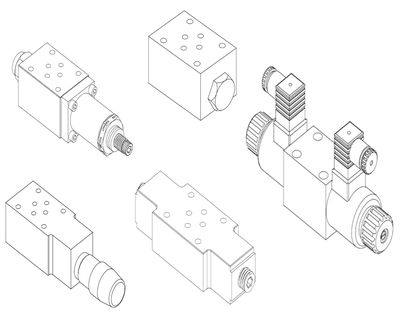

1. F4WE... Direction Control Valves             : NG6/ 420bar/ Upto 60LPM

2. FZ2FS... Throttle Check Valves                  : NG6/ 315bar/ Upto 60LPM

3. FZ2S... Pilot Check Valves                             : NG6/ 315bar/ Upto 60LPM

4. FZ1S...  Sandwich Check Valves                 : NG6/ 315var/ Upto 60LPM

5. FZDR... Pr. Reducing Valves                          : NG6/ 315bar/ Upto 30LPM

6. FZDB... Pr. Relief Valves                                  : NG6/ 315bar/ Upto 60LPM
