2/2 POPPET VALVES

---

Hydraulic poppet valves are two-way, two-position directional control valve that use a poppet moving against a seat to open or block oil flow. Unlike a spool valve where internal clearances lead to internal leakages, the poppet designs are virtually leak free.

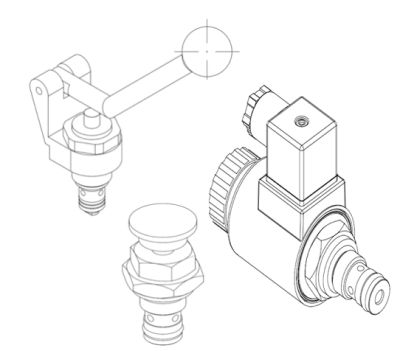

DHF series valves are available in normally open or normally closed configurations with a a variety of actuation mechanism including solenoid coils, lever and spring return push knobs. These valves are available as cartridges and line mounted versions.

1. DHF 06...           : NO & NC/ 210bar/ 16 LPM/ Solenoid

2. DHF08...            : NC/ 210bar/ 36 LPM/ Solenoid

3. DHFM06...        : NC/ 210bar/ 16 LPM/ Push Knob

4. DHFL06...          : NC/ 210bar/16 LPM/ Lever

5. NHF06...             : NC/ 700bar/ 8 LPM/ Solenoid
