Logic Elements (FLC/FLCD)

Description

FLUIDIKTM FLC type Logic Cartridge Valves can be used to create a variety of versatile functions in hydraulic circuits with cavity standardised to DIN ISO 7368 dimensions. These valves are high flow elements that are pilot controlled and can be used to control flow, pressure and direction and designed for multifunction applications.

Key Features:
Available with Direction (FLC) and Relief Function (FLCD)
Optional damping feature for direction function

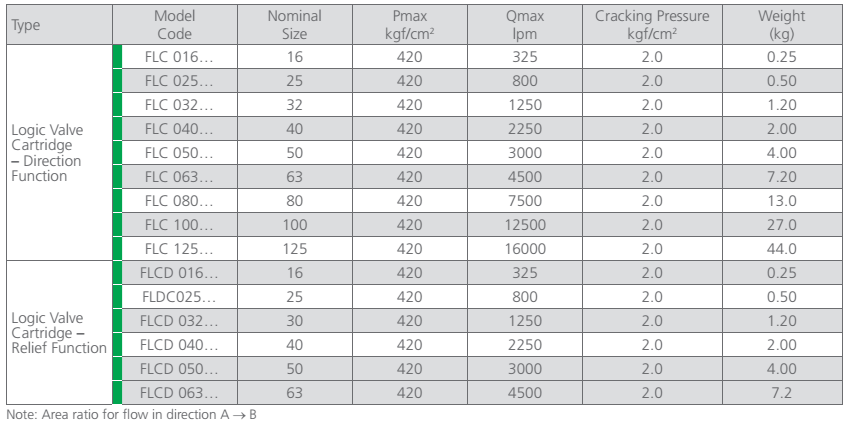

Size range from NG 16 to NG 125 (up to NG 63 in FLCD)
Logic covers (FLA…) available on request
